Submersible Pump

DP series self priming deep well pump

PUMP

Single Phase

Heavy Duty Continuous Work
Pump body Cast Iron
Impeller Brass/Stainless Steel/Techno-polymer(P.P.O)
Mechanical Seal SIC/Ceramic/Graphite
MOTOR
Motor Housing Aluminum Alloy
Shaft Carbon steel/stainless steel
Insulation ClassB/Class F

Protection

 IP44/IP54
Cooling External Ventilation
PRODUCT DESCRIPTION VIDEO
Application
DP Self-priming deep well pumps consist of an ejector unit and a centrifugal pump.The ejector unit can be put in a 4"diameter well.These pumps are suitable to convey clean water or non_aggressive chemical fluids.They are suitable to pump water from deep well and supply water automatically by pressure tank and pressure control.It is always advisable to install a foot valve with a strainer on the bottom of inlet pipe.


Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

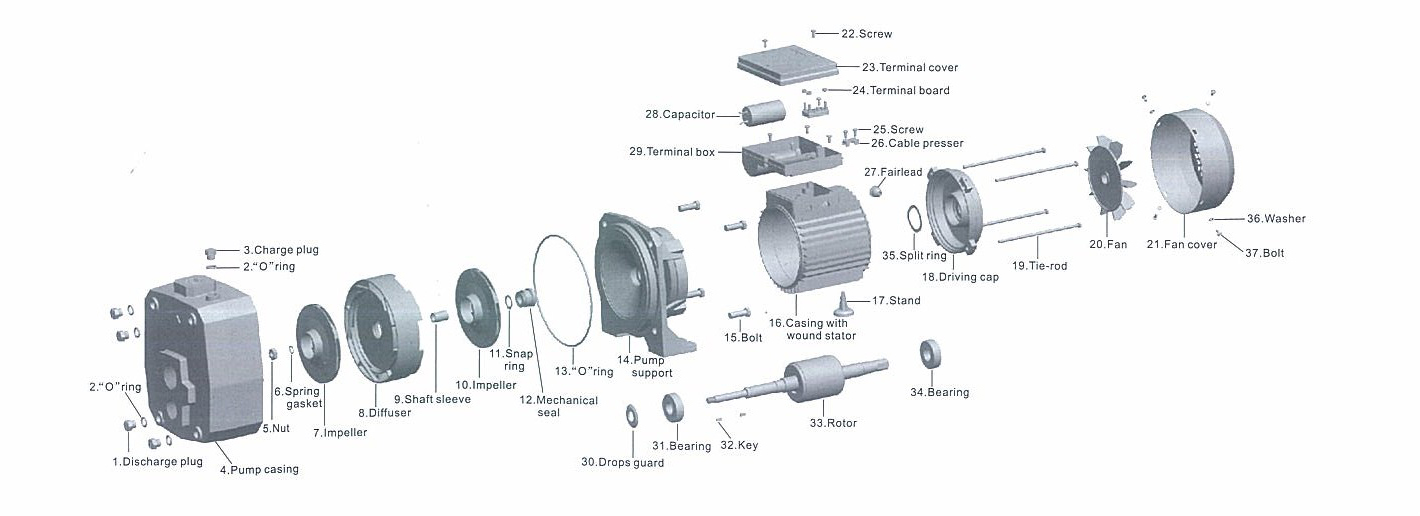

Explode drawing



Related Products

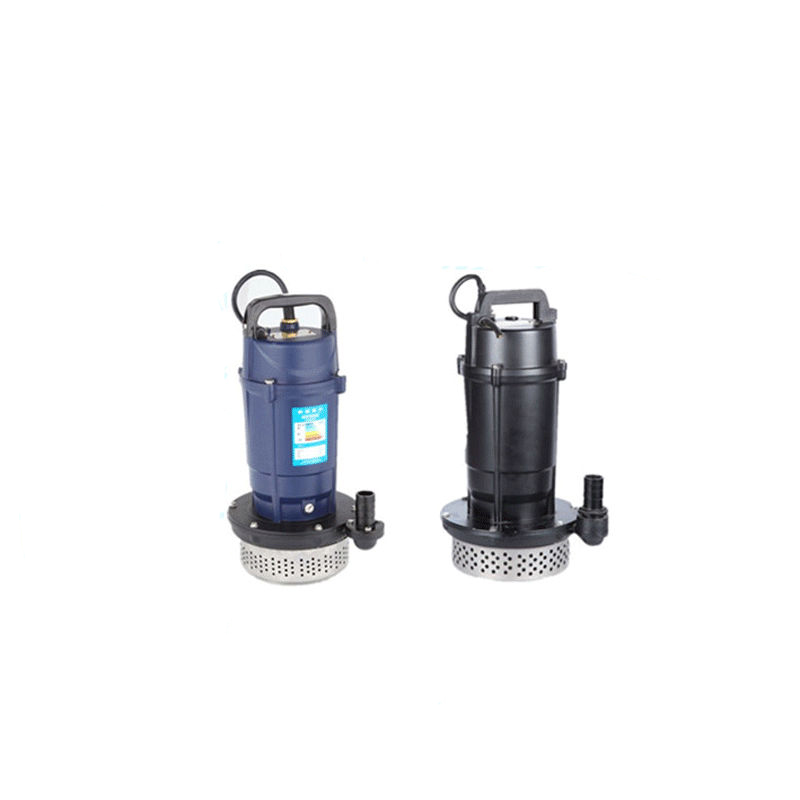

QDP series submersible pump
