Submersible Pump

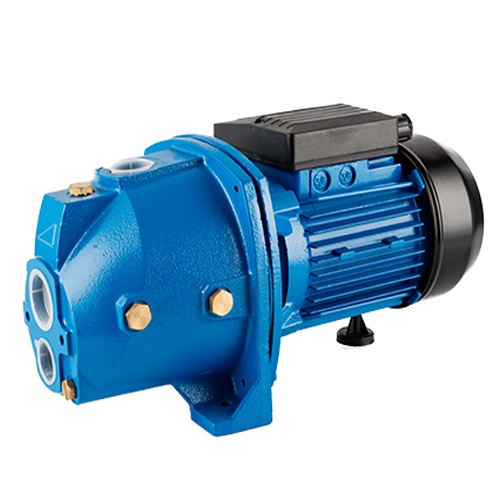

JDW series self priming deep well pump

PUMP

Single Phase

Heavy Duty Continuous Work
Pump body Cast Iron
Impeller Brass/Stainless Steel/Techno-polymer(P.P.O)
Mechanical Seal SIC/Ceramic/Graphite
MOTOR
Motor Housing Aluminum Alloy
Shaft Carbon steel/stainless steel
Insulation ClassB/Class F

Protection

 IP44/IP54
Cooling External Ventilation
PRODUCT DESCRIPTION VIDEO
Application
JDW Self-priming deep well pumps consist of an ejector unit and a centrifugal pump.The ejector unit can be put in a 4"diameter well.These pumps are suitable to convey clean water or non_aggressive chemical fluids.They are suitable to pump water from deep well and supply water automatically by pressure tank and pressure control.It is always advisable to install a foot valve with a strainer on the bottom of inlet pipe.


Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

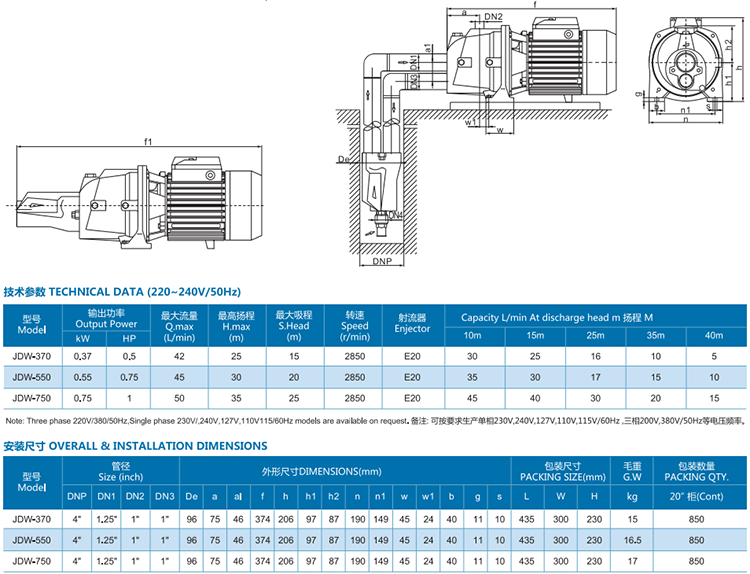

Dimensions

* The normal power standard is 220v 50hz single phase & Three phase 220,380V50hz.

Single phase 230v,240v,127v,110v,115v/60hz models are available on request.

Technical data

Related Products

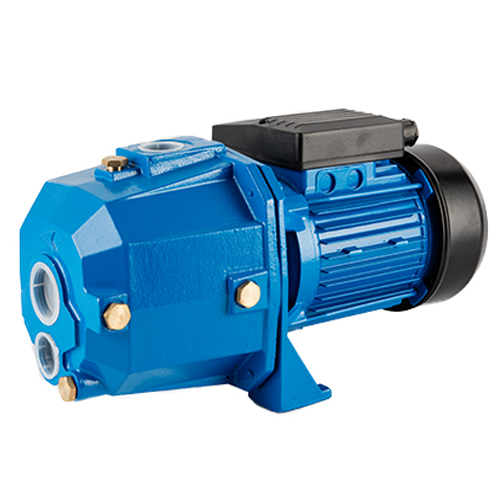

DP series self priming deep well pump
DP series self priming deep well pump
Read More

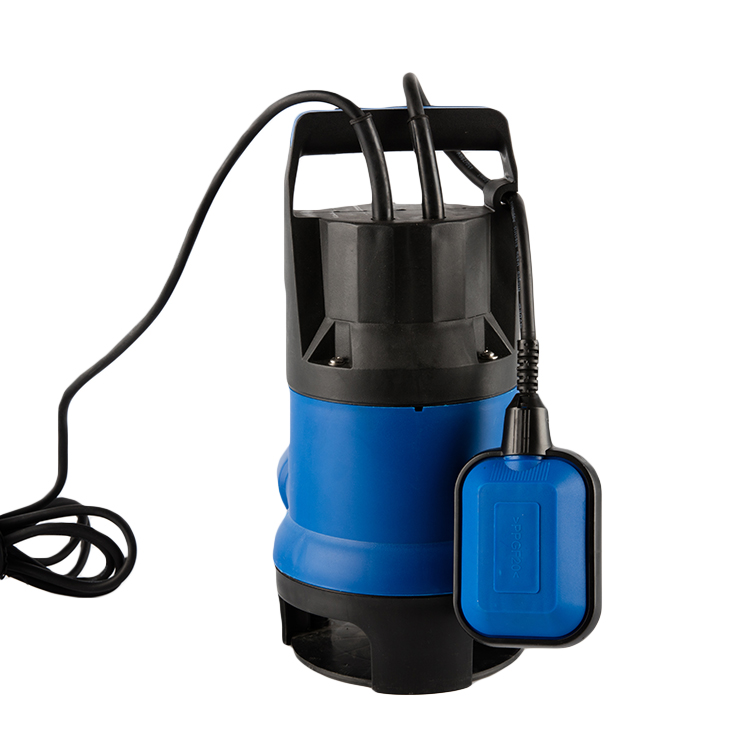

QDP series submersible pump
QDP series submersible pump
Read More

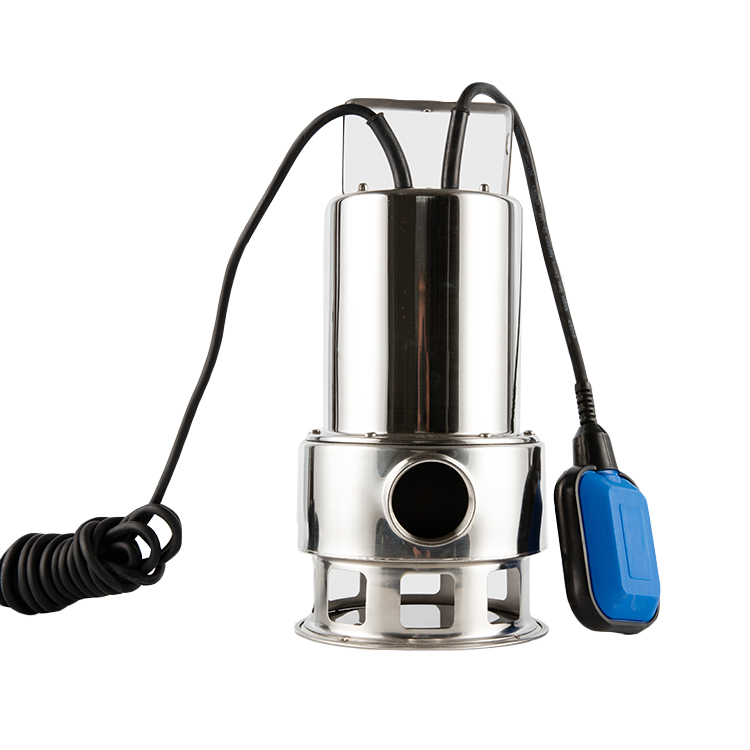

QDP-SS series submersible pump
QDP-SS series submersible pump
Read More

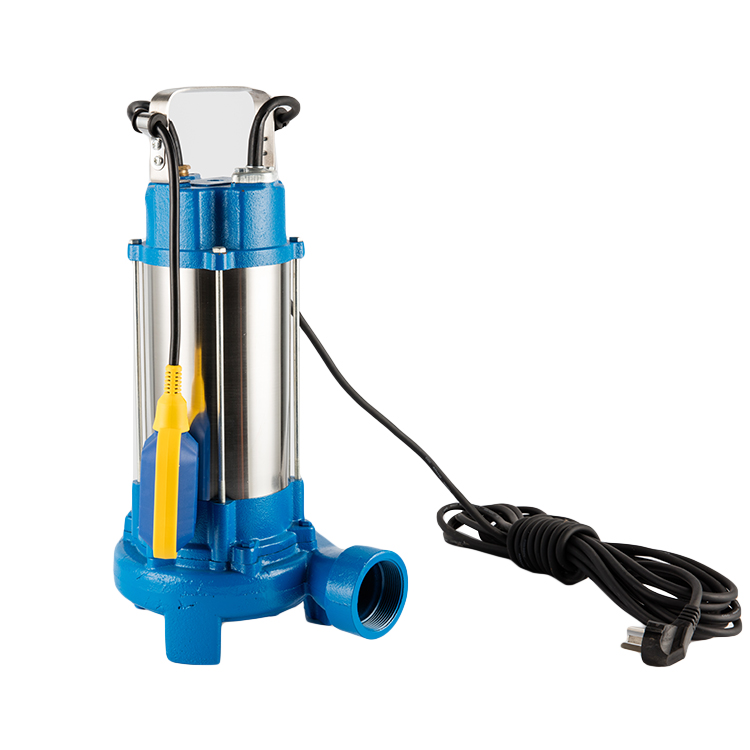

V series stainless steel submersible pump
